092 Bronze Rolled Bushing Wrapped With Through Holes Bearing Bush High Load Capacity Split Bronze Bushing

Product Categories

Shaanxi Fortune Industries Co.ltd

Contact Now

092 Bronze Rolled Bushing Wrapped With Through Holes Bearing Bush High Load Capacity Split Bronze Bushing

Brand Name : SFT

Model Number : TCB902

Place of Origin : China

MOQ : 500PCS

Price : USD1-USD100/PC

Payment Terms : D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000PCS/Month

Delivery Time : 7-50days

Packaging Details : bag+carton+pallet

Type : sleeve

Material : CuSn8P

Application : hoisting, mining machinery, agricultural machinery

Bush types : Sleeve Flange

Size : 14*16*12mm etc Customized Size

Surface treatment : Oil Immersion

Contact Now

Size	Customized
Material	CuSn8P, Customized
Color	Natural
Certification	ISO9001, TS16949
Density	8.8g/cm3
Hardness	90-150HB
Working Temperature Limit	-40~150℃
Max. Dynamic Load	100N/mm²
Max Linear Velocity(Grease)	2m/s
Max PV value Grease	2.8N/mm2·m/s
Friction Coefficient	0.06~0.15
Pressure strength	>460N/mm²
Yield Strength	>280 N/mm2
Mating Axis	Hardness≥50, Roughness 0.4~1.0
Coefficient of heat conduction	58W/m·K
Linear Expansion Coefficient	18.5×10-6/K
Application	hoisting, mining machinery,forest machinery, agricultural machinery

Explanation: TCB900 bronze wrapped bushing, with diamond oil socket to preserve oil grease. It has good anti-fatigue, anti-erosion and anti-abrasion and load capacity. Its material is CuSn8P. It can be produced by different tin-bronze material and the surface can be produced with other type of oil socket and oil groove in different working condition.

Packing & Delivery

Packing Details: Anti-rust Paper, Carton, Wood Case or Pallet.

092 Bronze Rolled Bushing Wrapped With Through Holes Bearing Bush High Load Capacity Split Bronze Bushing

Product Tags:

Wrapped With Through Holes Bearing Bush

High Load Capacity Split Bronze Bushing

092 Bronze Rolled Bushing

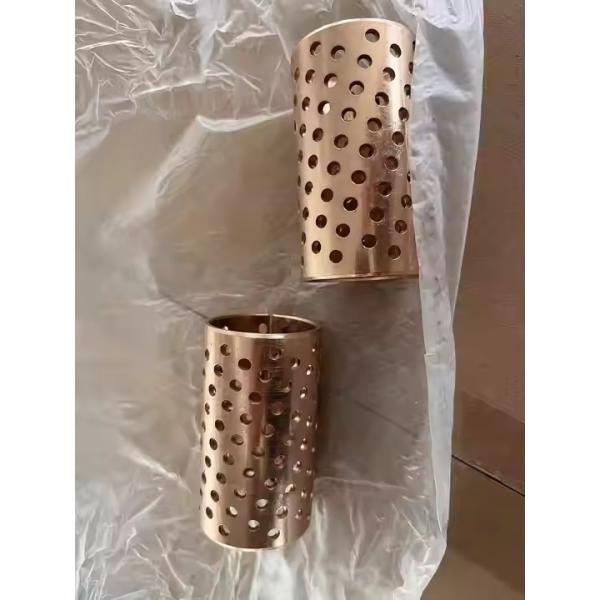

092 Bronze Rolled Bushing Wrapped With Through Holes Bearing Bush High Load Capacity Split Bronze Bushing Images
